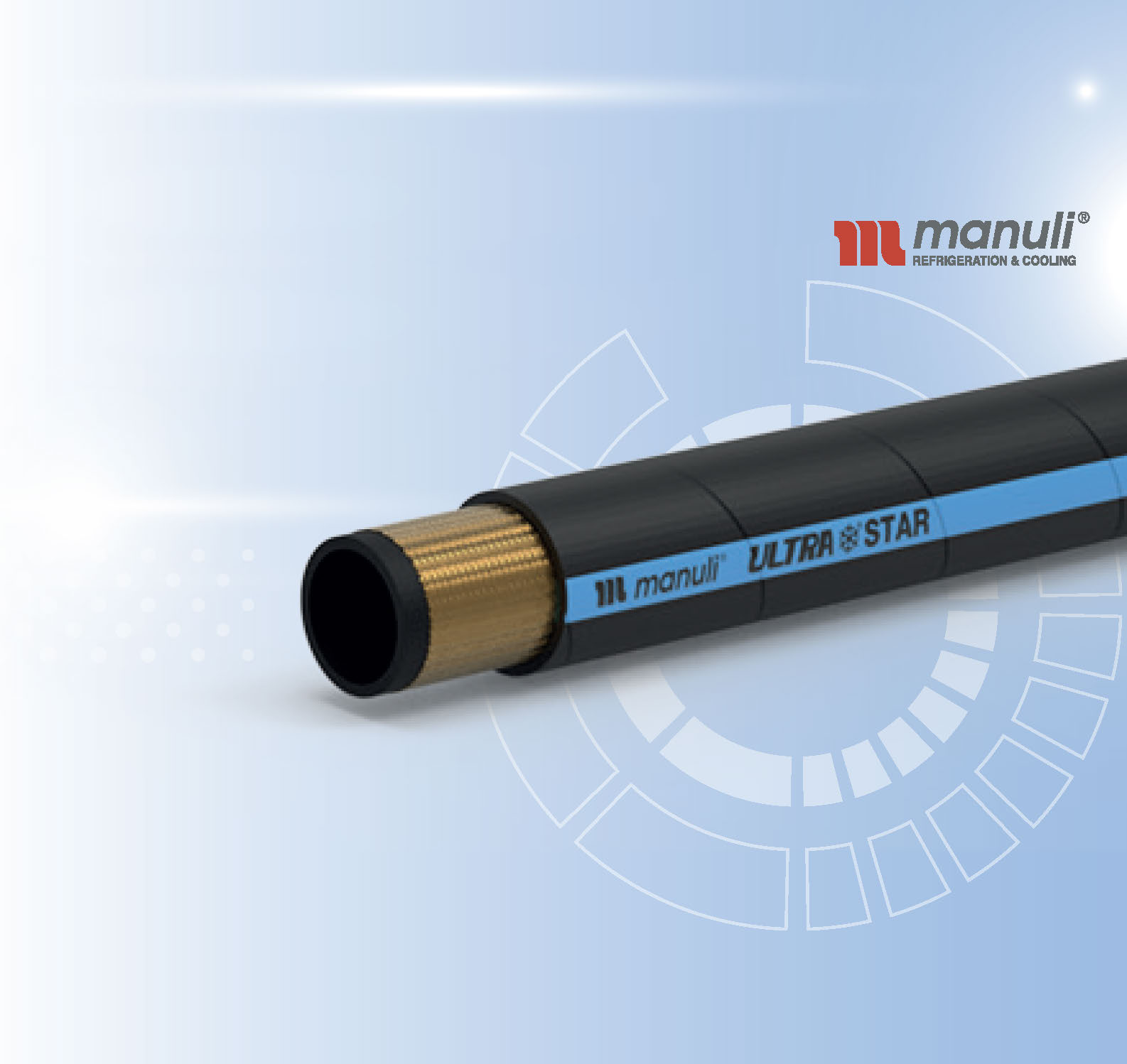

A/C Hose Ultra Star
H01133005-m
Description
This Ultra Star A/C hose is a size #04, DN 05mm – 3/16” reduced hose, supplied per metre. It features a unique molecular barrier compound tube with one steel wire braid reinforcement and a high-temperature resistant synthetic rubber cover. This hydraulic style (Type B – SAE J2064) hose offers superior permeability performance, exceeding Type C, D, E & F requirements of SAE J2064.
Specifications
| Brand | Manuli |
| Hose Size | #04, DN 05mm – 3/16” |
| Length | Per metre |
| Tube Material | Unique molecular barrier compound made from synthetic rubber (IIR) and advanced nano-materials |
| Reinforcement | One steel wire braid |
| Cover Material | High temperature and environmental resistant synthetic rubber (EPDM) |
| Continuous Service Temperature Range | -40 °C to 125 °C |
| Max Operating Temperature | 140 °C |
| Applicable Specifications | SAE J2064 Type B Class I (meets the performance of Type E), SAE J3062 Type B Class I |
| Refrigerant Compatibility | R134a, R1234yf |
| Lubricant Compatibility | PAG, POE |
| Fittings | Optional Ferrule crimped or reusable solutions (Star-crimp, Star-FIT) |
| Permeability | < 5 kg/m²/yr (for R134a) |
| Max Working Pressure | 35 bar (500 psi) |
| Burst Pressure | 150 bar (2170 psi) |
| Minimum Bend Radius | 85 mm (3.35 inch) |
Vehicle / Equipment Applications
Bus air conditioning systemsOff-highway equipment air conditioning systems
Documents
Weight: 0.3 kg
